产品介绍产品图纸

产品编号：102113282014
产品名称：单级BWD型摆线针轮减速机
产品类别：摆线针轮减速机系列
产品型号：BWD

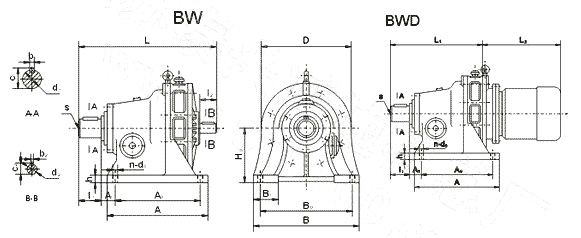

Appearance and installation dimension (mm) Frame Centre height Installationdimension Shaft end dimension A1 A0 B1 B0 h s Hole Output shaft Intput shaft n d0 d1 b1 c1 l1 d2 b2 c2 l2 09 80 17 76 30 120 12 M8 4 11 22 6 24.5 30 15 5 17 25 10 100 58 90 35 150 14 30 8 33 35 22 11 120 69 110 55 240 16 16 35 10 38 56 18 6 20.5 35 12 140 73 150 60 280 20 M10 45 14 48.5 71 22 24.5 40 13 160 78 200 75 340 25 M12 17 55 16 59 80 30 8 33 55 14 200 53 320 90 22 70 20 74.5 102 35 10 38 60 15 240 39 380 420 32 M16 90 25 95 120 45 14 48.5 70 16 290 45 480 80 560 35 M20 26 100 28 106 140 50 53.5 82 16A 280 440 500 17 325 80 500 120 630 40 30 120 32 127 165 55 16 59 100 18 420 122 330×2 160 800 50 2-M20 6 32 140 36 148 210 70 20 74.5 120 (mm) Frame Outerside dimension Weight kg A B H D Double Shaft style Flange style L L1 L2 B2 09 100 144 160 140 203 142 According to motor size 6.5 10 120 185 184 168 215 155 14 11 160 280 240 200 269 191 29 12 200 320 275 240 340 255 45 13 250 390 356 300 409 294 80 14 380 400 425 340 487 369 135 15 440 470 529 430 581 440 210 16 560 620 614 500 676 443 400 16A 520 560 614 724 17 600 690 706 580 795 639 660 18 810 880 883 710 1030 819 1180 Note:Matching tolerance of shaft d1/d2 is h6
